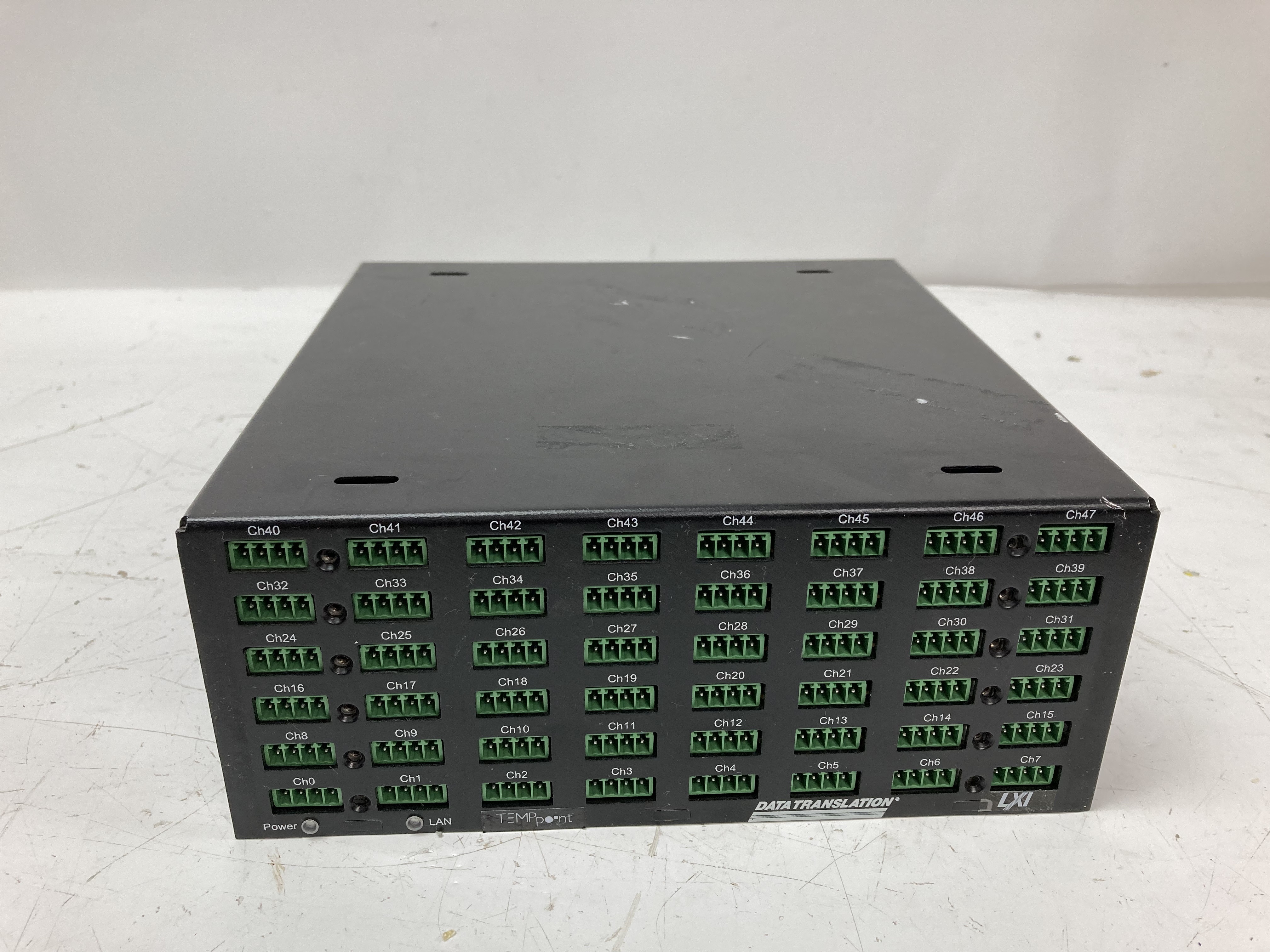

Temp Point LXI Data Translation
Fair Condition
Check BMI Stock for More Items
***73090***

Juniper EX4500-VC1-128G Virtual Chassis Module
Check BMI Stock for More Items
***65091***

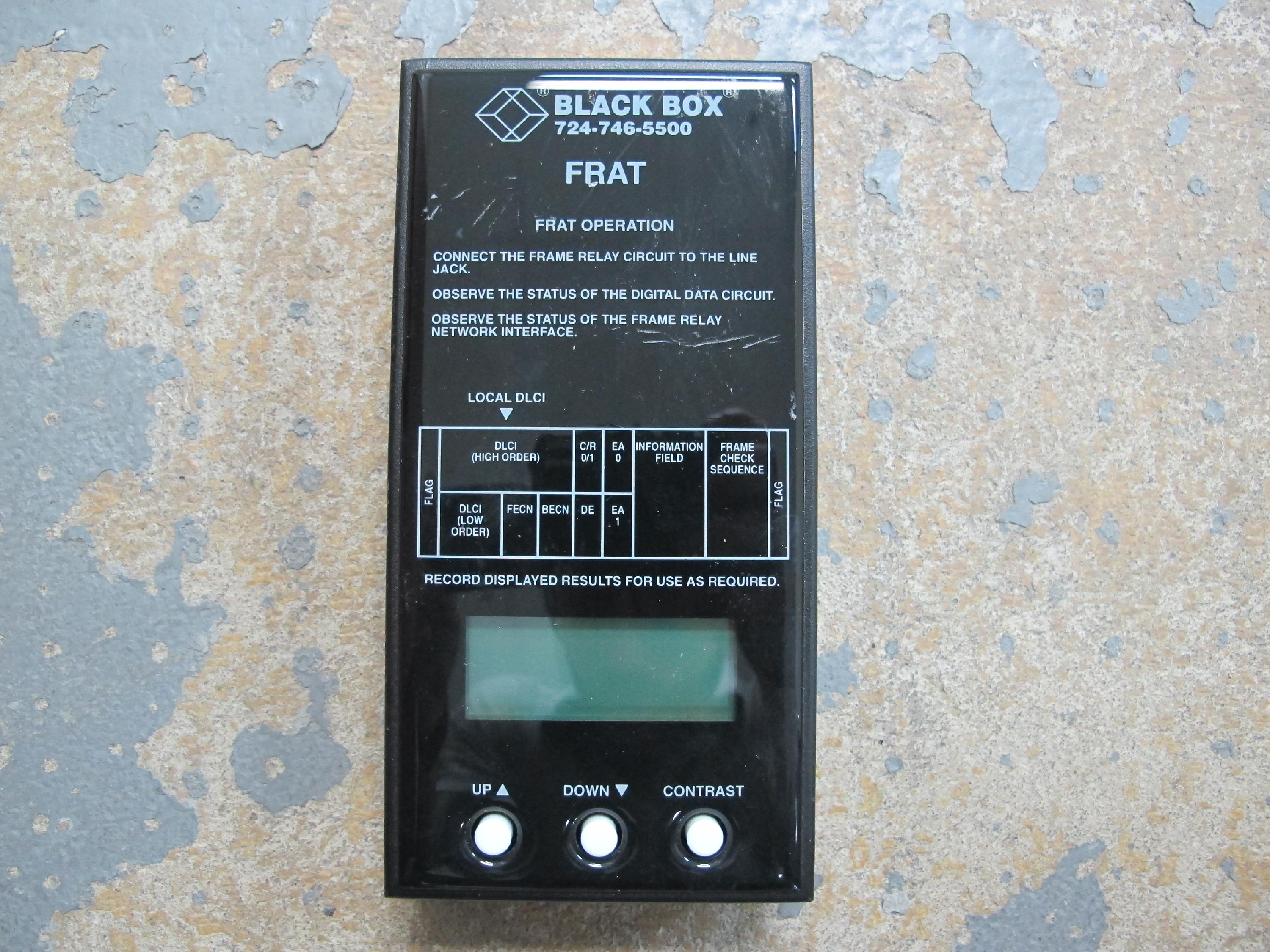

Black Box TS910A Frame Relay Access Tester

Antenna – none
Type – network testing device
Connectivity Technology – wired
Data Link Protocol – Frame Relay
Data Transfer Rate – 64 Kbps
Status Indicators – LCD display
Voltage Required – AC 110 V
Voltage Required Margin – ± 10%
Frequency Required – 60 Hz
Type – external power adapter
***MPN TS910A
***OEM Black Box
***SKU*** 62082

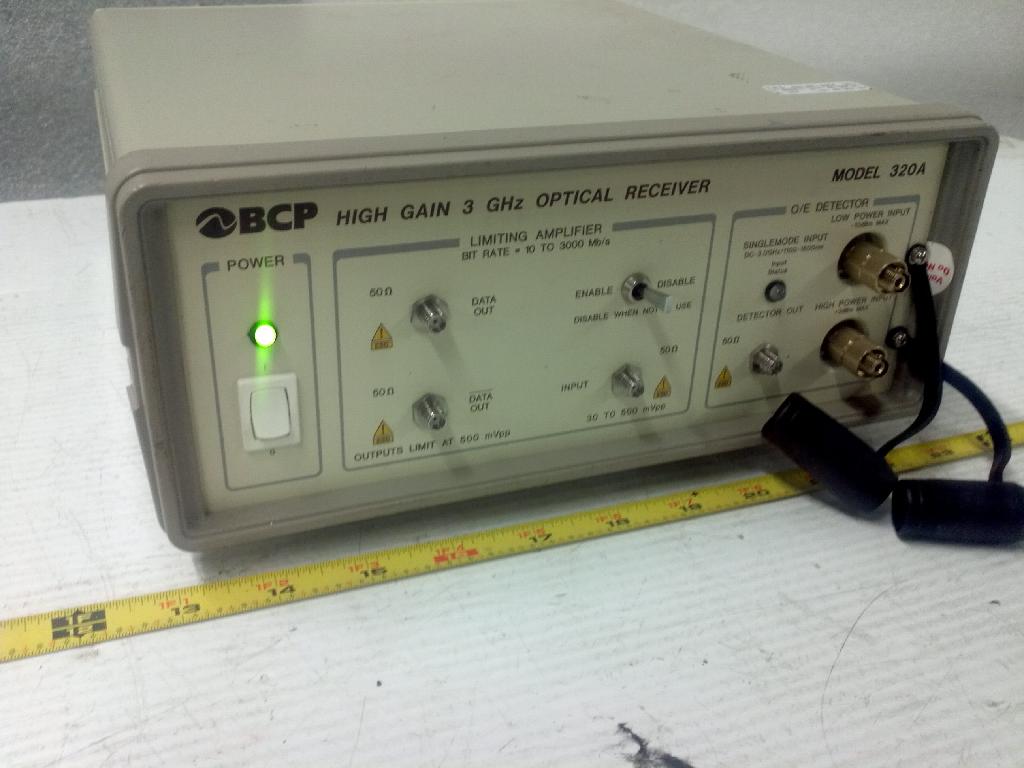

This BCP Model 320A High Gain 3 GHz optical receiver is used for O/E conversion for transmitter testing. This unit does not require gain or offset adjustments.

SPECIFICATIONS
O/E Detector Section
•High Power Optical Input: 1.0 mW (0 dBm) maximum
•Low Power Optical Input: 200 µW (-7 dBm) maximum
•Bandwidth (-3 dB): DC to 2.5 GHz minimum; 3.0 GHz typical
•Maximum Conversion Gain: 2000 V/W minimum; 2500 V/W typical
•Wavelength: 1200 to 1600 nm; InGaAs APD detector
•Fiber Interface: 9/125 µm single-mode
•Optical Input Connector: Diamond universal screw-on adapter
•Input Optical Return Loss: 30 dB minimum, 1310/1550 nm
•Polarity: Non-inverting (high input = high output)

Limiting Amplifier Section
•Limiting Amplifier Input: 1.0 V peak-to-peak (pp) maximum
•Bit Rate: 0.01 to 2.5 Gb/s minimum; 3.0 Gb/s typical
•Gain: 24 dB minimum; 26 dB typical
•Rise/fall times: 150 ps maximum, 20 to 80%, when in limiting region with 50 ohm termination
•Return Loss (50 ohm)
Input: 10 dB minimum, frequency < 2 GHz
Output: 10 dB minimum, frequency < 2 GHz
•Output Amplitude (when in limiting region with 50 ohm termination): 0.45 Vpp minimum; 0.60 Vpp typical

Electrical
•Input Voltage: 100 to 240 V AC, 50 to 60 Hz
•Electric Input Connectors: Female, SMA or N
The unit does power up as shown in the photo but it would most likely require calibration before use. The power cable is not included.
***MPN 320A-33ST
***OEM
***SKU*** J01189
